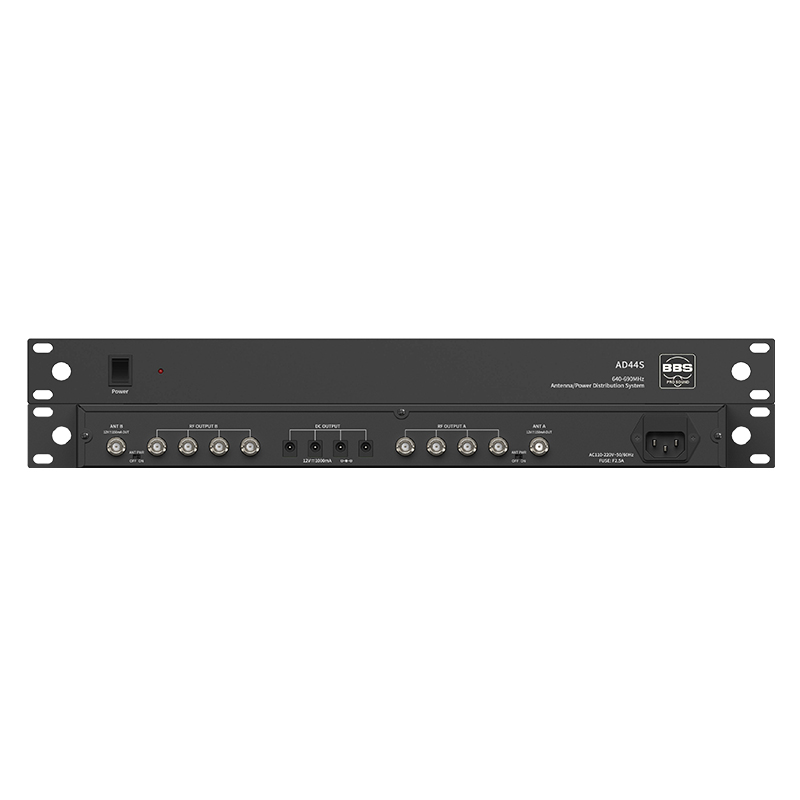

AD44S
QR code
share
Antenna Distributor
Features:
*1U standard rack design with metal house.
*Customized frequency band for wireless wicrophones.
*4 independent isolated DC power outputs (DC 12V/1A), up to 4 wireless receivers of various brands simultaneously.
*Low noise, low distortion which ensures clear multi-channel reception and eliminates mixing interference.
*Input BNC connector with power output for signal booster: Direct connection to an antenna booster simplifies installation and effectively increases reception range.
Features:
*1U standard rack design with metal house.
*Customized frequency band for wireless wicrophones.
*4 independent isolated DC power outputs (DC 12V/1A), up to 4 wireless receivers of various brands simultaneously.
*Low noise, low distortion which ensures clear multi-channel reception and eliminates mixing interference.
*Input BNC connector with power output for signal booster: Direct connection to an antenna booster simplifies installation and effectively increases reception range.
Detail
Specifications：
Rack Mount: EIA standard 1U
Frequency Range: 640-690MHz
RF Output Gain: 1dBm±1dB
Noise Figure: ≤2.0
OIP3: +14dBm
Impedance: 50Ω
Input Power Supply: DC 12V/150mA
Output Power Supply: Each channel outputs DC 12V/1000mA (four channels)
Main Unit Power Supply: AC 110-240V 50/60HZ
Connector: BNC
Dimensions(mm): 480X52X210mm
Weight: 2.4KG
