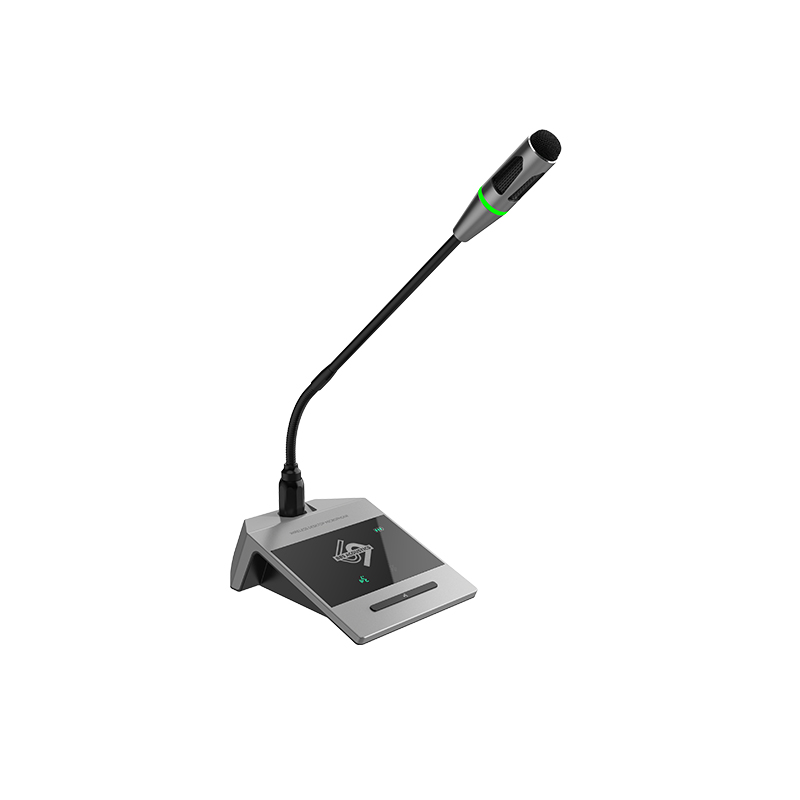

CS-100CU/DU/HT -FREEDOM Conference system

Specifications:

CS-100CU/ CS-100DU

Frequency Range: UHF 643.500MHz-691.500MHz

Oscillation Method: PLL phase-locked frequency synthesis

Harmonic Radiation: <35dBm

Bandwidth: 48MHz

Maximum Deviation ±45kHz

Microphone: Condenser, unidirectional

RF Power Output: 15mW

Battery Capacity: 3.7V, 5200mAh

Charging: 5V/2A Type-C

Continuous Working Time: Approximately 8 hours

Size: 123 × 180 × 51.5mm (base only, excluding microphone stem)

Gooseneck length: 40CM

Weight: 0.62Kg

CS-100HT

Band: UHF (643.500MHz–646.500MHz)

Channels: 13

Channel Spacing: 250kHz

Bandwidth: 3MHz

Display & Indicators:Dual-color LED status indicator

Type: Dynamic (moving-coil) capsule

Charging:Input: 5V/1A (USB Type-C)

Battery: 3.7V, 700mAh Li-ion

Operating Time: ~5 hours (continuous use)

Transmit Power (Handheld): <30mW

Net Weight: 320g
