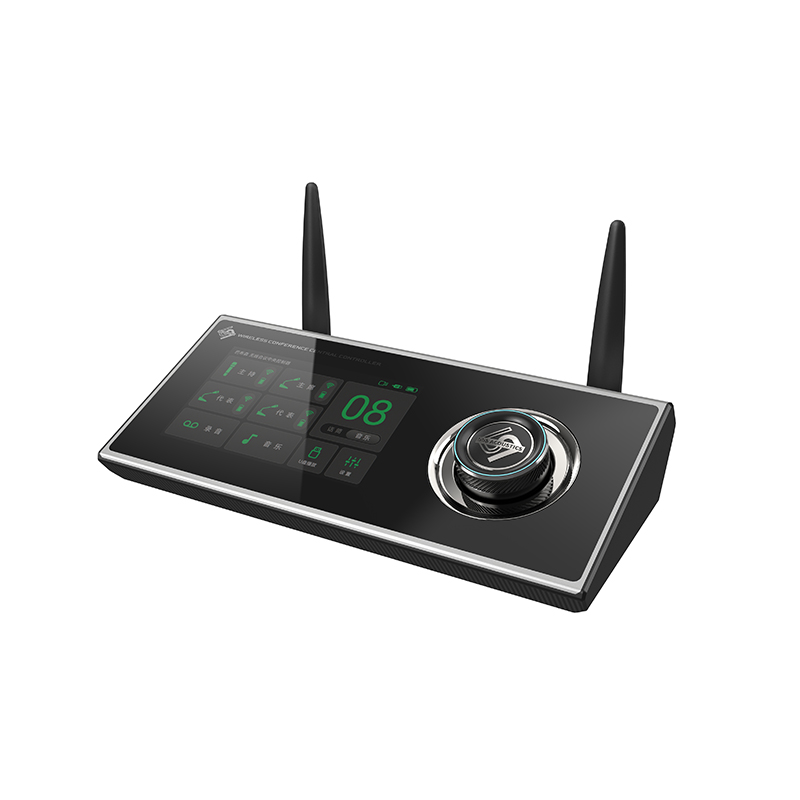

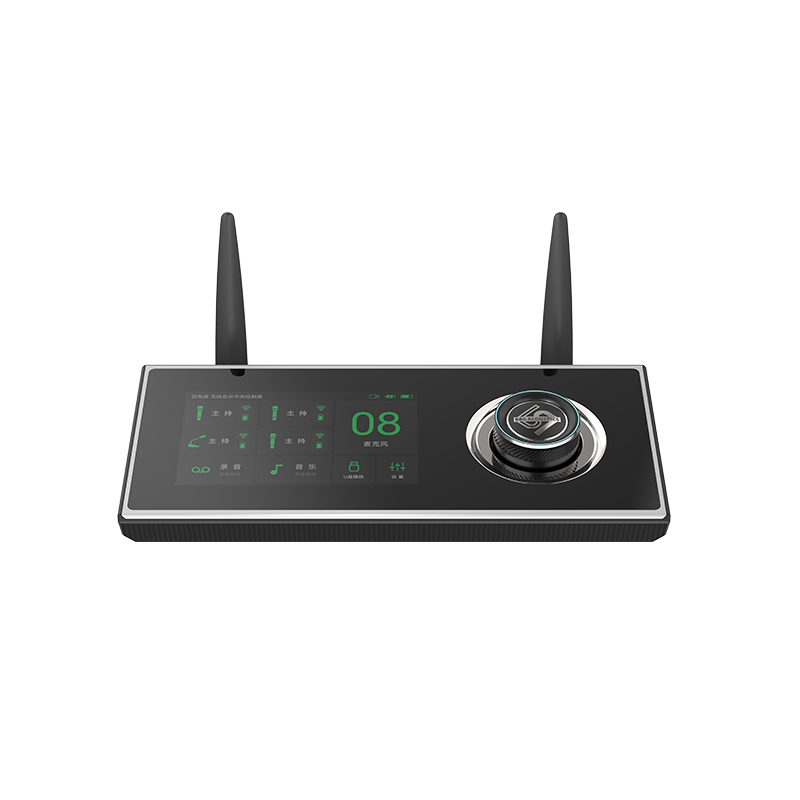

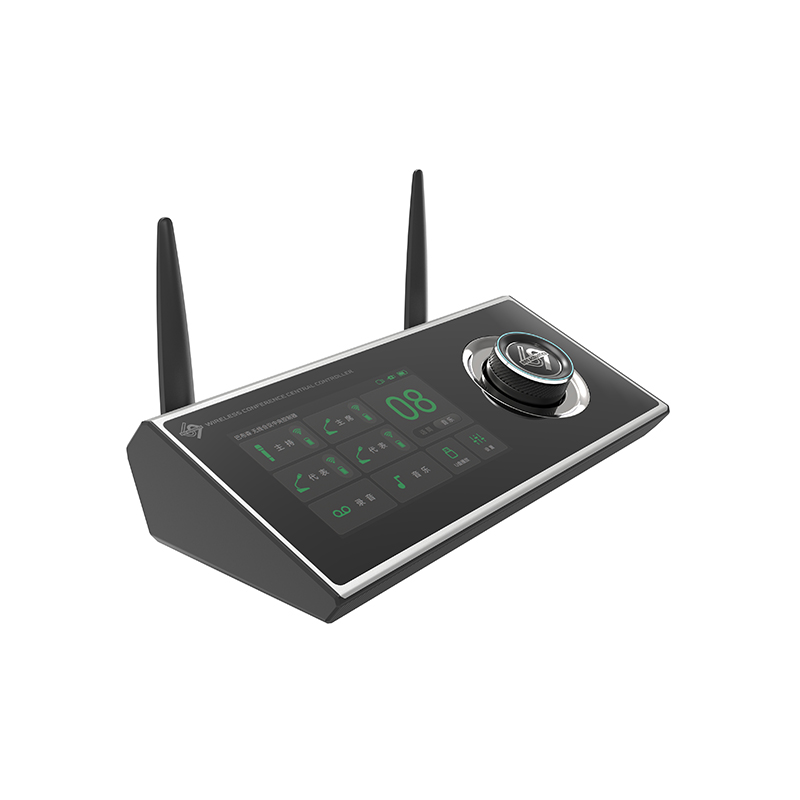

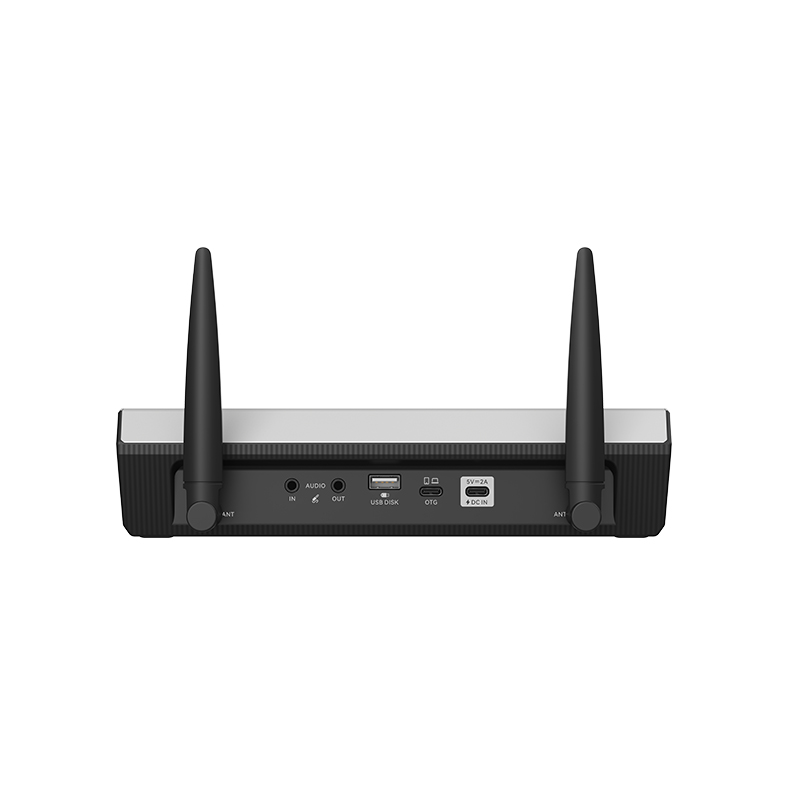

Wireless Central Controller for FREEDOM Conference System
Features
CS ONE integrates multiple wireless technologies for stable and reliable wireless transmission. It has multiple interfaces to meet various signal connection needs. This device can connect and control the wireless microphones CS-100DU,CS-100CU and wireless speakers such as RD-3PRO, TR-3PRO,RC-4 or CL-3PRO into a conference system. And supports quick channel selection, one-key frequency matching. It connects up to 4 channels of wireless microphones.
Features
CS ONE integrates multiple wireless technologies for stable and reliable wireless transmission. It has multiple interfaces to meet various signal connection needs. This device can connect and control the wireless microphones CS-100DU,CS-100CU and wireless speakers such as RD-3PRO, TR-3PRO,RC-4 or CL-3PRO into a conference system. And supports quick channel selection, one-key frequency matching. It connects up to 4 channels of wireless microphones.
Detail
Specifications
CS ONE
Screen: 5-inch TFT touchscreen
Frequency Range (Microphone): UHF, 643.500MHz-691.500MHz
Modulation Method (Microphone): FM
Working distance (Microphone): Approximately 30 meters
Oscillation Method: PLL phase-locked frequency synthesis
Sensitivity: At 25kHz offset, input 6dBv, <-90dBm
Bandwidth: 48MHz Comprehensive
S/N: >70dB Comprehensive THD: <1% @1kHz Comprehensive
Frequency Response: 50Hz-18kHz (±1dB)
Working distance (Speaker): Approximately 20 meters
Battery Specifications: 3.7V, 10000mAh
Charging : 5V/2A Type-C
Continuous Working Time: Approximately 8 hours
