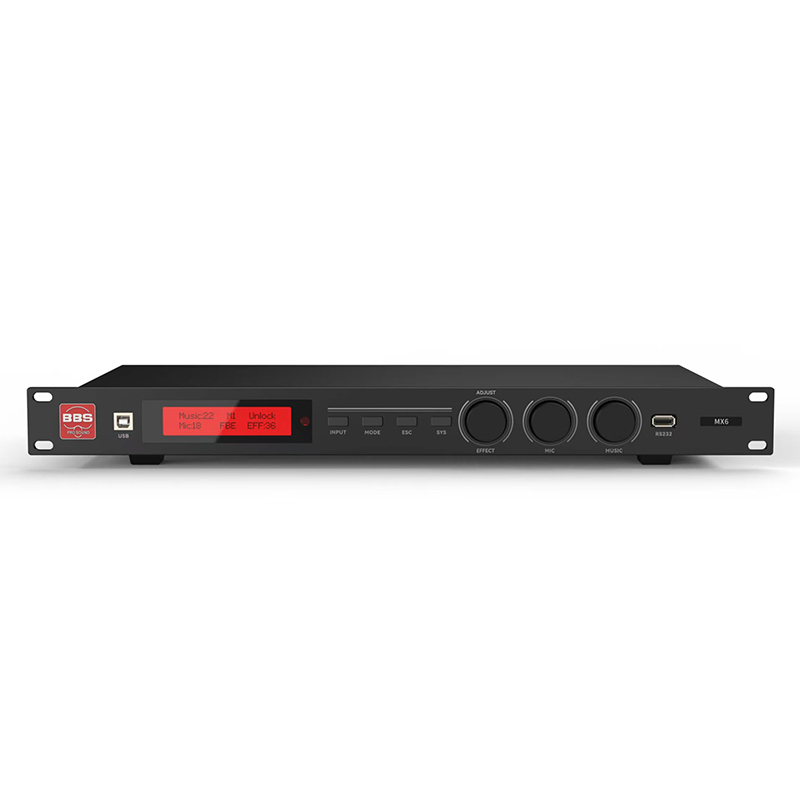

MX6

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Features:
● Audio Inputs:
Music Input: 2 pairs of RCA (phono) analog stereo inputs
Mic Input: 1× optical digital audio input + 2× TS analog inputs

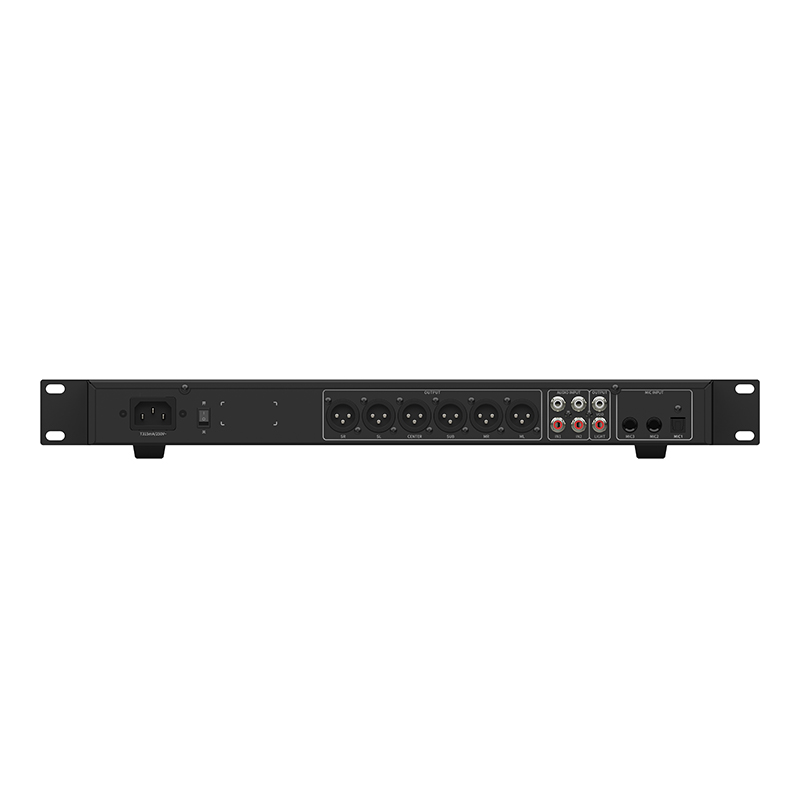

● Audio Outputs:
6× XLR (balanced) analog outputs
Dedicated RCA (phono) output for lighting control music signal
Dedicated RCA (phono) output for vocal karaoke mic signal
● Music Input Processing:
High-pass filter
7-band parametric EQ
● Mic Input Processing:
10-stage noise gate
Frequency shifting，High-pass filter，Compressor
15-band parametric EQ
● Vocal Effects Processing:
Echo/Reverb
● Output Processing:
Dual-engine limiter/Mixer
High-pass & low-pass filter (6dB~48dB/oct)
Delay (up to 80ms)
9-band parametric EQ
Contact
Detail


Specifications:

Audio Input

  • Music Input (2 selectable stereo pairs)

    • Connector: RCA (unbalanced)

    • Max Input Level: +14dBu

    • Input Impedance: 24kΩ

  • Microphone Input

    • 1× Optical Digital Input

    • 2× TS Analog Inputs

    • Max Input Level: -7.5dBu

    • Gain: 22dB

    • Input Impedance: 50kΩ (unbalanced)

Audio Output

  • Analog Output

    • Connector: 6× XLR (balanced)

    • Max Output Level: +14dBu

    • Source Impedance: <50Ω

Technical Specifications

  • Frequency Response: 20Hz-20kHz (±0.5dB)

  • Dynamic Range/Signal-to-Noise Ratio: 106dB (A-weighted)

  • THD+N:

    • 0.0048% (Music Input: 0dBu @1kHz)

    • 0.0063% (Mic Input: -22dBu @1kHz)

  • Latency: 1.27ms (Analog In-Out @48kHz)

  • Power Supply: 220VAC ±10%, 20W

  • Dimensions: 44×420×178mm (1U rackmount)

  • Weight:

    • Net: 2.5kg

    • Gross: 3.1kg
