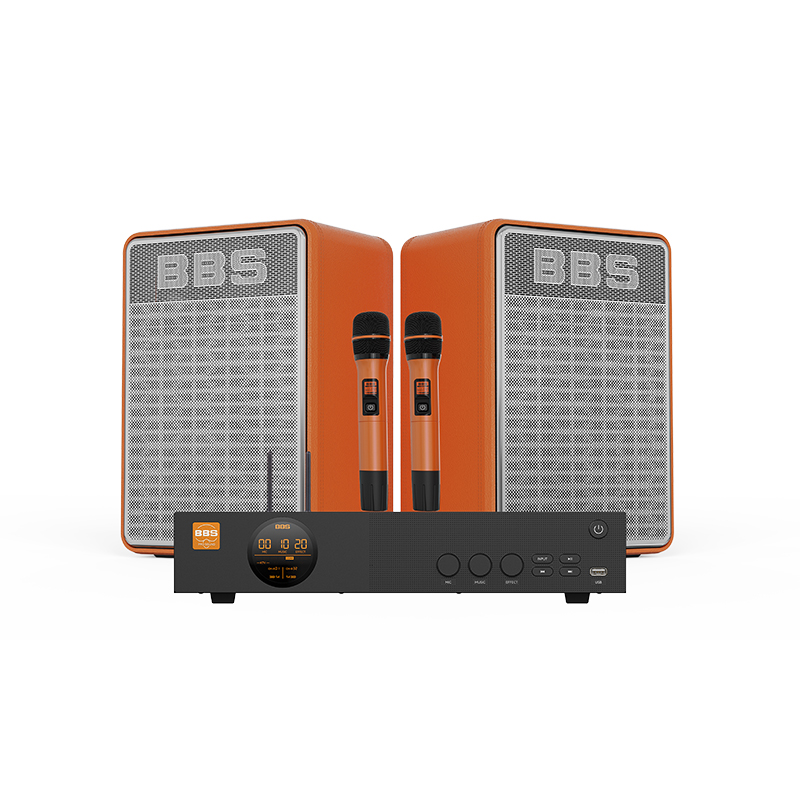

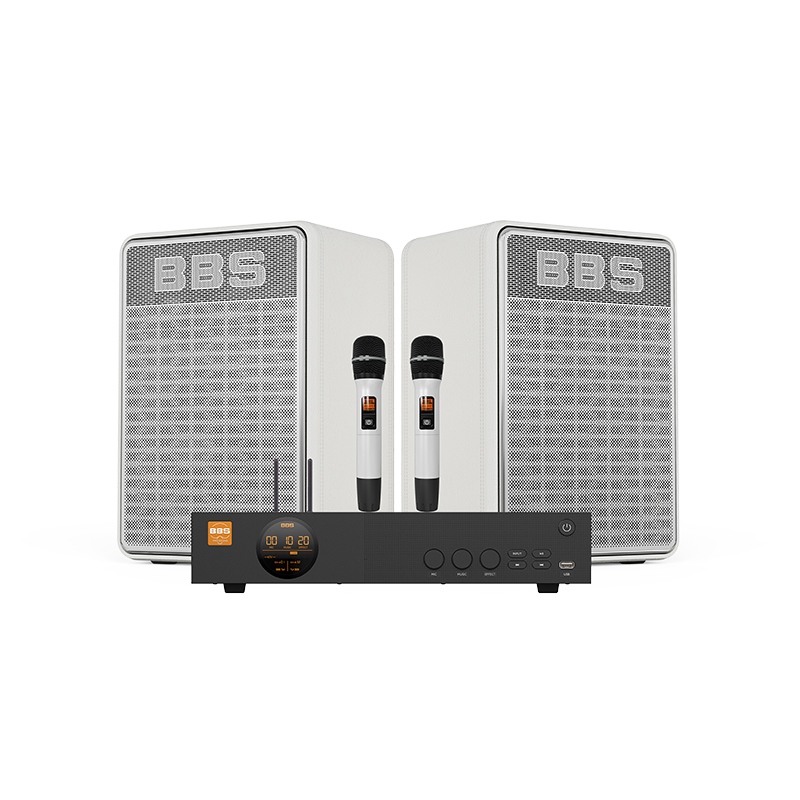

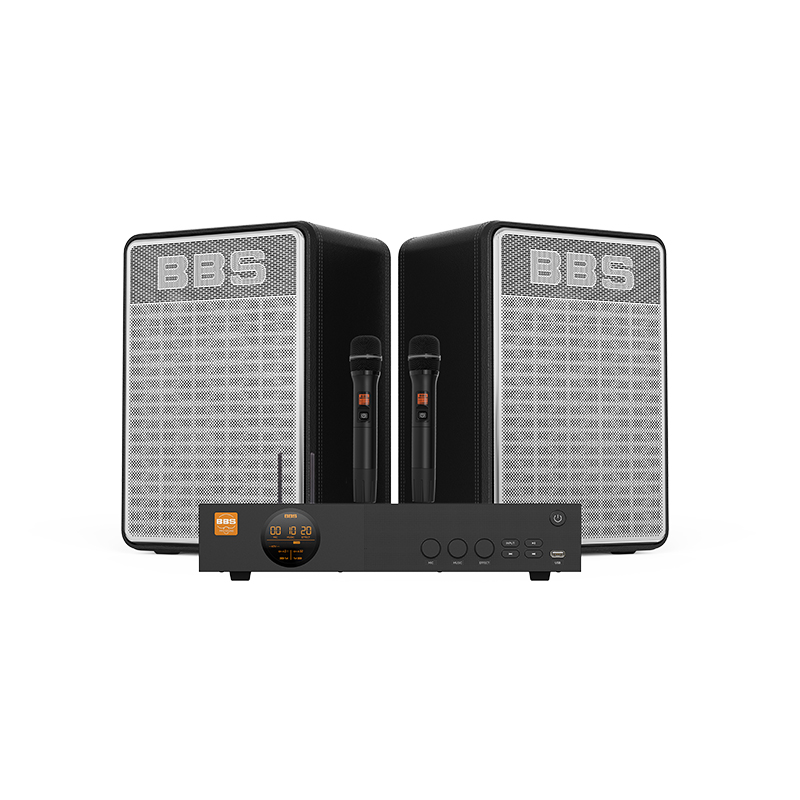

TS7 Kit
Features:
*Karaoke system for home use
*Including one set of wireless microphone and one pair of speaker
*Microphone system is 3 in 1 function ( mic, amplifier and effector)
*Easy for connect.
Specifications：
TS7 Speaker
System type: 3-way 4-drivers speaker system
Woofer: 6.5-inch .Ф25mm voice coil (neody magnet)
Mid-range unit: 4-inch .Ф25mm voice coil (neody magnet)
Tweeter:2x1 inch tweeter.Ф25mm dome composite membrane (neody magnet)
System impedance (Rated Impedance): 40
Frequency range (-10dB):45Hz-20kHz
Frequency response(+3dB):50Hz-20kHz
Sensitivity(1w/m):92dB
Max SPL: 11ldB (peak value 117dB)
Crossover:1000Hz/4.5kHz
Coverage: 120°x60°(HxV)
Material: high-quality board
Cabinet surface treatment (Finish): Artificial Leather
Rated input power(continuous/max/peak):80W/160W/320W
Input connectors: binding posts
Size (W*D*H):270*195*385mm
TA150 Wireless 3 in 1 Microphone
Receiver
Output power (EIA 1kHz 1% THD): 150W*2
T.H.D:<0.08%.20Hz-20kHz
S/R ratio(referenced to rated output power, 20Hz to 20 kHz, A-weighted).
>95dB
Signal channel separation(crosstalk) at 1kHz:>70dB
Frequency response +1dB:20Hz~20kHz
Input:USB play,VOD, BGM,OPT. COAXIAL, HDMI*2.BT
Output:REC,SUB.HDMI/ARC. Microphone
Speaker output: red and black binding posts
Cooling system: Internal air forced dissipation, fan cooling and quick
adjustment,temperature protection
Microphone
Frequency range: A: 645.250-660.250MHz; B:665.250-680.250MHz
Channels: 64CH
Frequency space:500kHz
Frequency oscillation mode: PLL frequency synthesis
Power:<30mW
Carrier wave stability: +5kHz
