EX-2
*True diversity dual channel design.
*The system can support up to 8 sets of products for stack use.
*Supports automatic frequency scanning and infrared frequency matching to achieve frequency pairing between the transmitter and the receiver.
*Can set up to 50 different ID numbers, facilitating the management of multiple products in complex application scenarios.
*The handheld transmitter is equipped with an active noise-canceling dynamic microphone..
*A brand-new audio circuit architecture, equipped with high-end audio-specific capacitors, enhances the performance of sound detail.
*Parallel RJ45 interface, supports RS485 protocol, supports future expansion of third-party management.

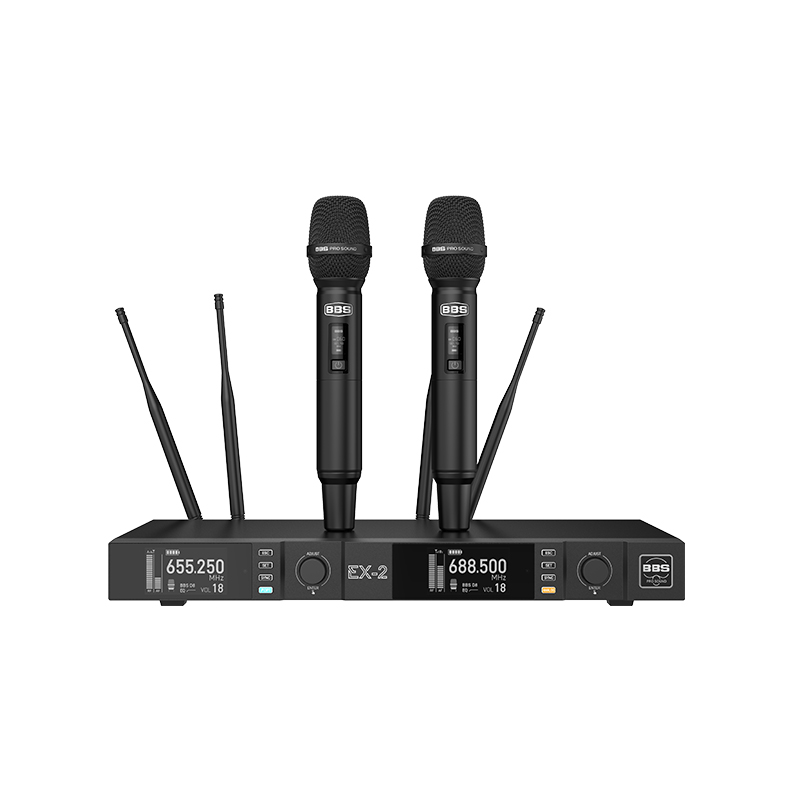

EX-2 HT SET: Handheld version 1 receiver + 2 handheld
EX-2 PT SET: Bodypack version 1 receiver + 2 bodypack
Specifications:
System
Frequency range: 651.000MHz-697.000MHz
Channels: 164 CH
Frequency space: 250KHz
Bandwidth: 46MHz
S/N Ratio: ≥50dB (national standard method), ≥102dB (A-weighted, conventional test method)
Working distance: > 100 meters (Without obstruction)
Receiver
Display mode: 2.69 "TFT color screen
Power supply: AC 110~220V - 50/60Hz
Analog audio output: XLR balanced socket+ unbalanced TRS 6.35mm socket
Digital audio output: OPT
Audio mode: Built-in multiple preset audio optimization curves
Built-in module: 4 groups of pre-allocated frequency modules, each group has 16 channels
Balance adjustment: Built-in high-low pass filter that can be independently controlled
Handheld Transmitter
Power: two levels, high and low power
Frequency stability: ±5KHz
Display Method: 0.96" TFT color screen
Transmission Gain: Adjustable 7-level gain
Microphone Type: Dynamic (noise reduction microphone)
Battery : 2 AA Size

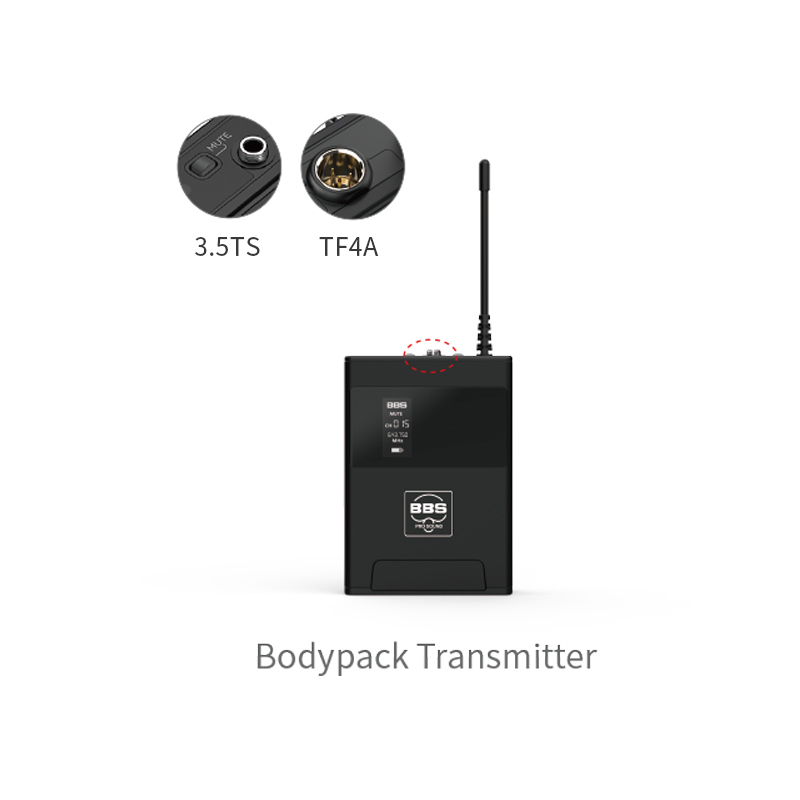

Bodypack Transmitter
Frequency Stability: ±5KHz
Transmission Power: ≤30mW (12±1dBm)
Connector: TA4F or 3.5 TS
Display Screen: TFT
Connector：TA 4F or 3.5 TS for option
Battery：2 *AA Size
Dimensions: 88*62*22mm
Microphone: Condenser headset or lavalier mic for option
