EX-1
*True diversity reception system with single channel design.
*Support up to 32 sets of products for stack use (designed for two frequency bands).
*Supports automatic frequency scanning and infrared frequency matching to achieve frequency pairing between the transmitter and the receiver.
*Can set up to 50 different ID numbers, facilitating the management of multiple products in complex application scenarios.
*The microphone is equipped with an active noise-canceling dynamic microphone.
*Adopts a replaceable microphone cartridge design, supporting user replacement with third-party compatible microphone cartridges.
*Parallel RJ45 interface, supports RS485 protocol, supports future expansion of third-party management.

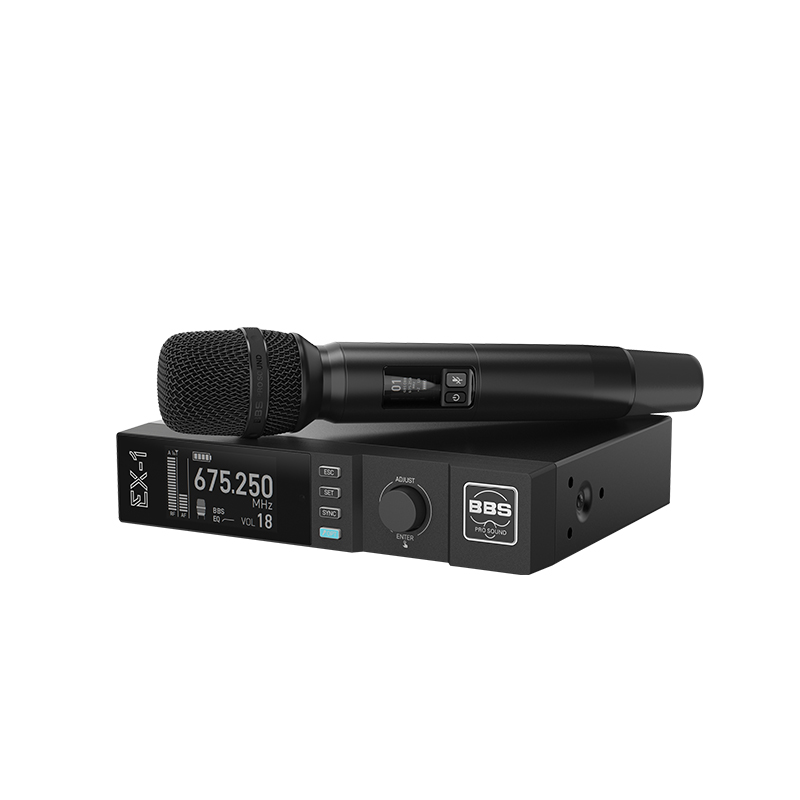

EX-1 HT SET: Handhled version
EX-1 PT SET: Bodypack version
Specifications:
System
Frequency Range: 651.000MHz to 697.000MHz
Channels: 164 CH
Frequency space: 250KHz
Frequency Bandwidth: 46MHz
SNR: ≥50dB (national standard method), ≥102dB (A-weighted, conventional test method)
Working Distance: ≈100 meters (unobstructed environment)

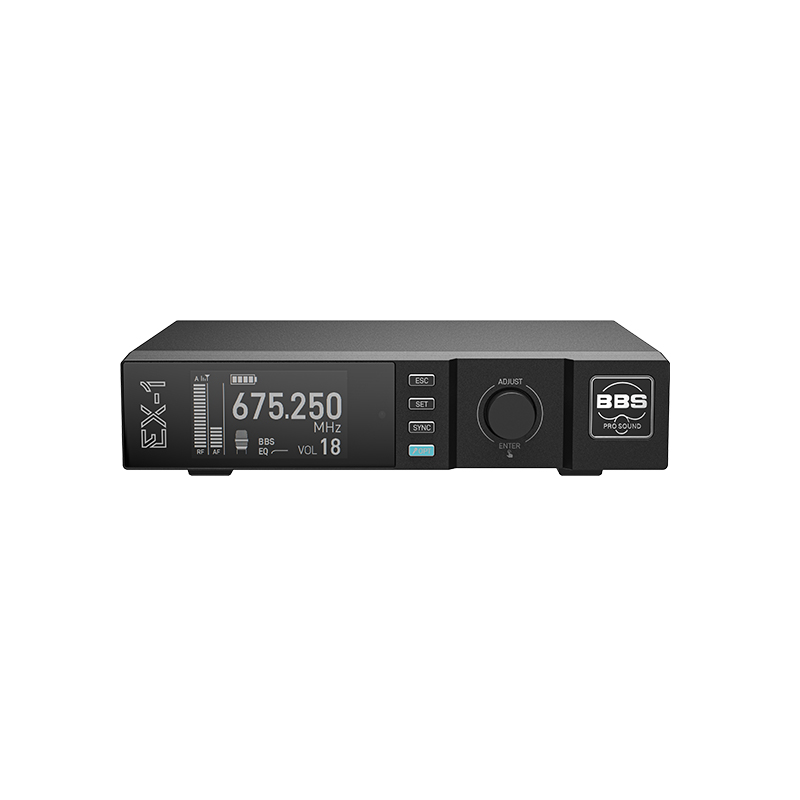

Receiver
Display Method: 2.69" TFT color screen
Power Supply: DC-12V 1.25A

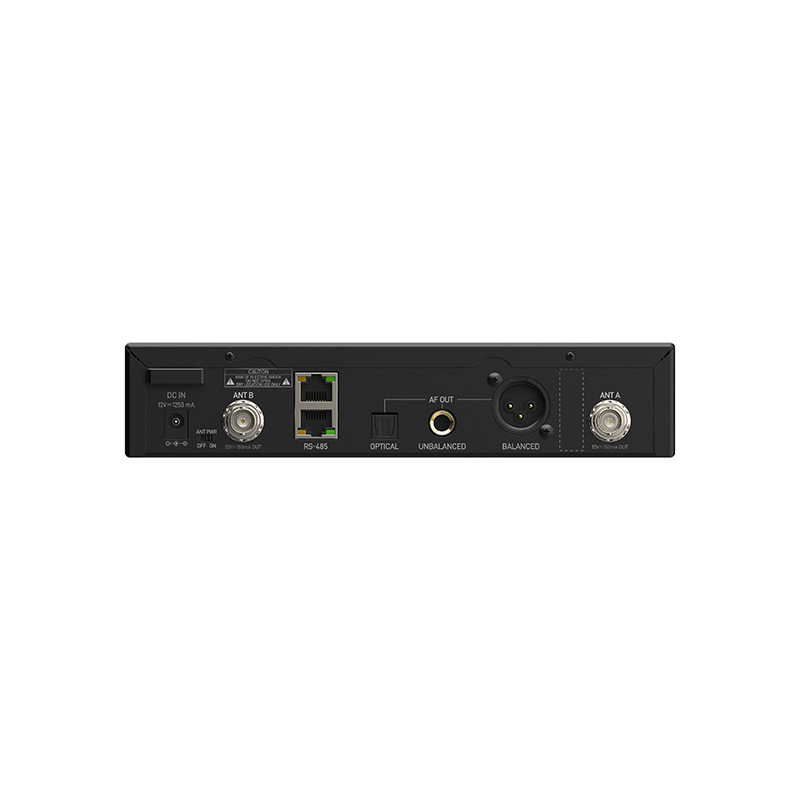

Analog Audio Output: XLR Balanced Socket and Unbalanced TRS 6.35mm Socket
Digital Audio Output: Optical output
Built-in Modules: Built-in 4 pre-allocated frequency modules, 16 channels per module
Curve Adjustment: Built-in independently controllable high-pass and low-pass filters

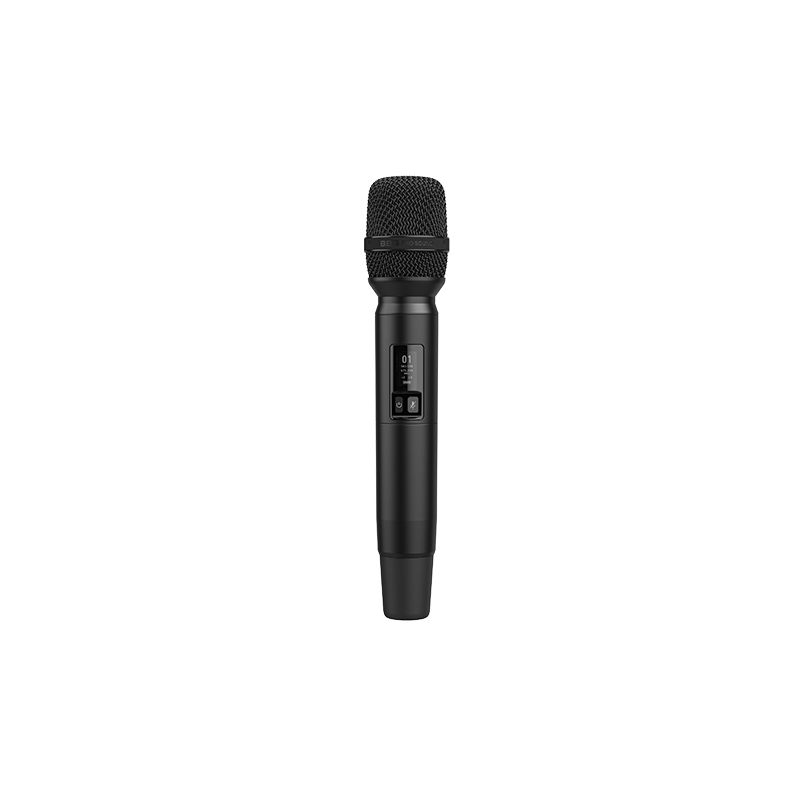

Handheld Transmitter
Transmission Power: High power mode 13dBm±1dB, low power mode 8dBm±1dB
Frequency Stability: ±5KHz
Display Method: 0.96" TFT color screen
Transmission Gain: Adjustable 7-level gain
Microphone Type: Dynamic (noise reduction microphone), compatible with third party
Battery : 2 AA Size

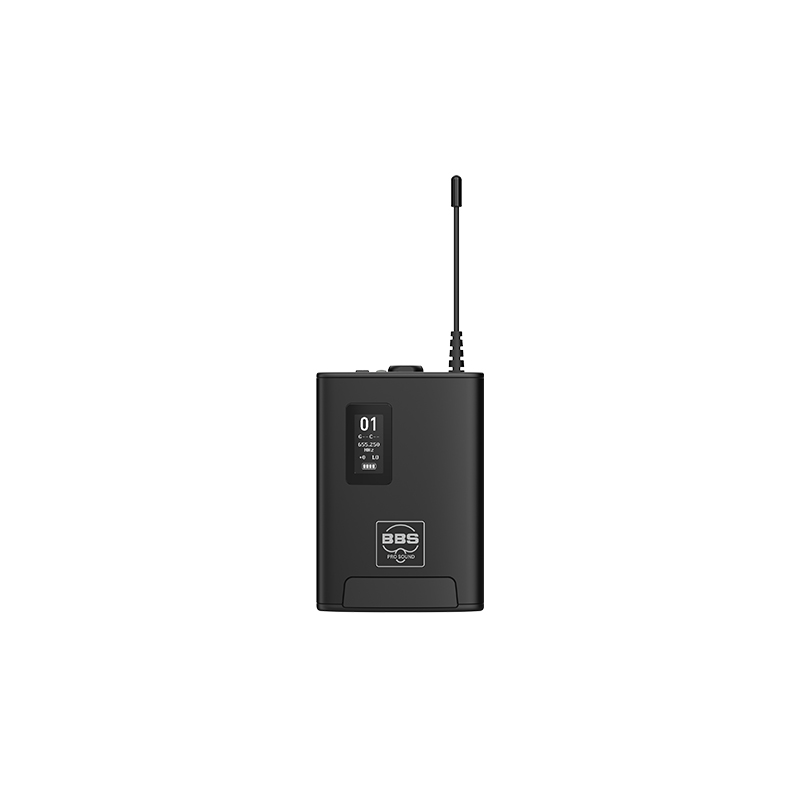

Bodypack Transmitter
Frequency Stability: ±5KHz
Transmission Power: ≤30mW (12±1dBm)
Connector: TA4F or 3.5 TS
Display Screen: TFT
Connector：TA 4F or 3.5 TS for option
Battery：2 *AA Size
Dimensions: 88*62*22mm
Microphone: Condenser headset or lavalier mic for option
