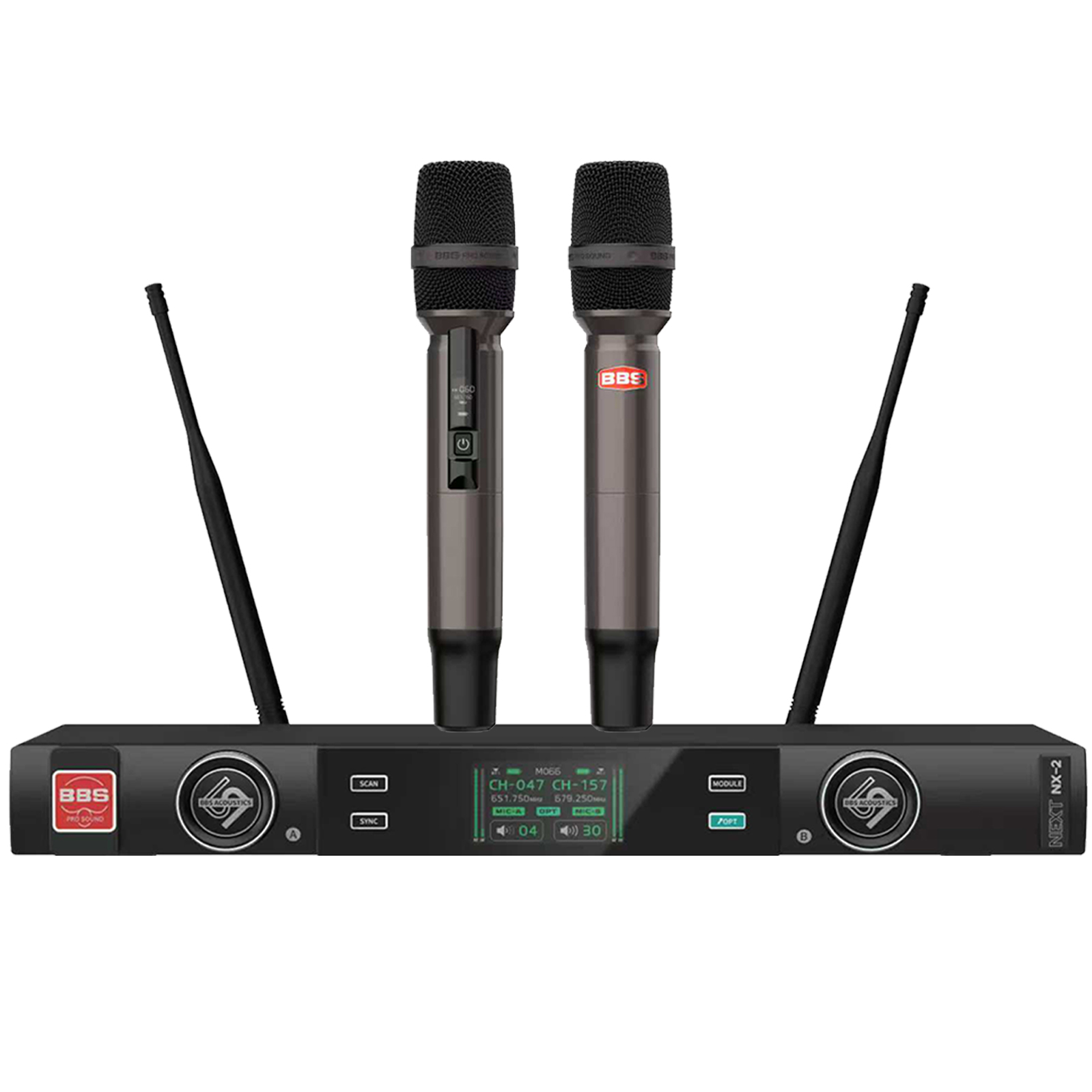

NX-2
*True diversity design with compact digital audio processing
*Industry-first, With the dual optical multi-channel dedicated effect processor BBS NEO, ushering in the era of digital transmission.
*The volume difference between the CH-A and CH-B is super small.
*Multi-stage filters with stronger anti-interference capability, independent narrowband filter, channel selection.
*Automatically mute when drop from a height greater than 10 cm.
*High-performance DSP integration.
* UHF dynamic compression technology for Hi-Low frequency selection.
Specifications:
System
Frequency Range: A: 651.000-673.000 MHz, B: 675.000-697.000 MHz
Channels: 164 CH
Working Distance: ≈80 m
Bandwidth: 50 MHz
Frequency Oscillation Mode: PLL Phase-Locked Frequency Synthesis
Frequency Space: 250 KHz
Receiver
Signal-to-Noise Ratio: >60 dB (national standard)
Frequency Stability: ±5 kHz
Reception Mode: CPU-controlled selection + pilot identification reception
Diversity : True diversity
Power Supply: 12V/DC 1250 mA

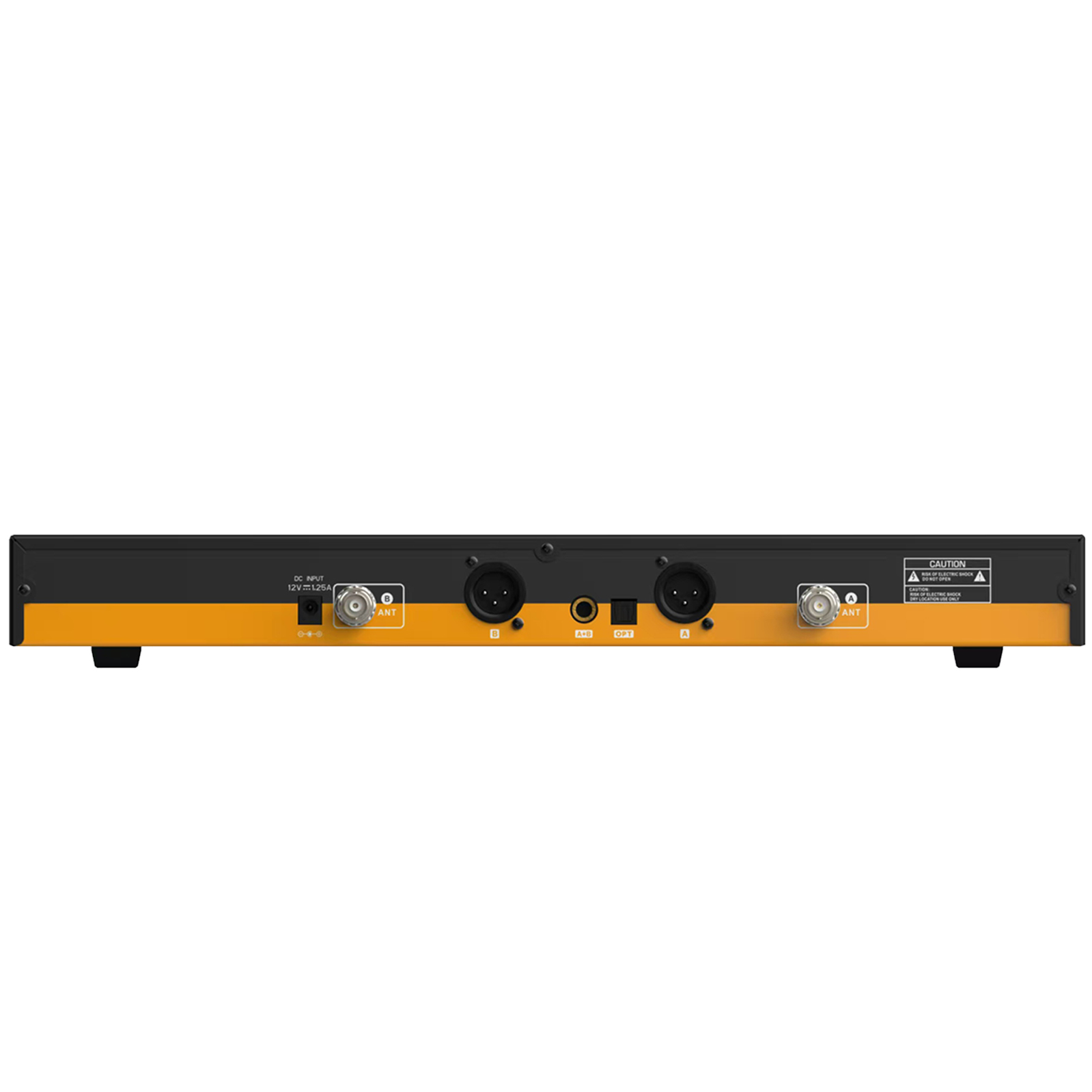

Audio Output: 6.35 mm unbalanced x1, XLR balanced x2, Optical x1
Mute Method: Mute & Lock Loop Circuit
Transmitter
Transmission Power: <30 mW
Transmission Mode: CPU-controlled carrier generation + pilot identification code generation
Frequency Stability: ±4 kHz
Display: TFT color screen
Battery: AA x2
Microphone Type: Dynamic
