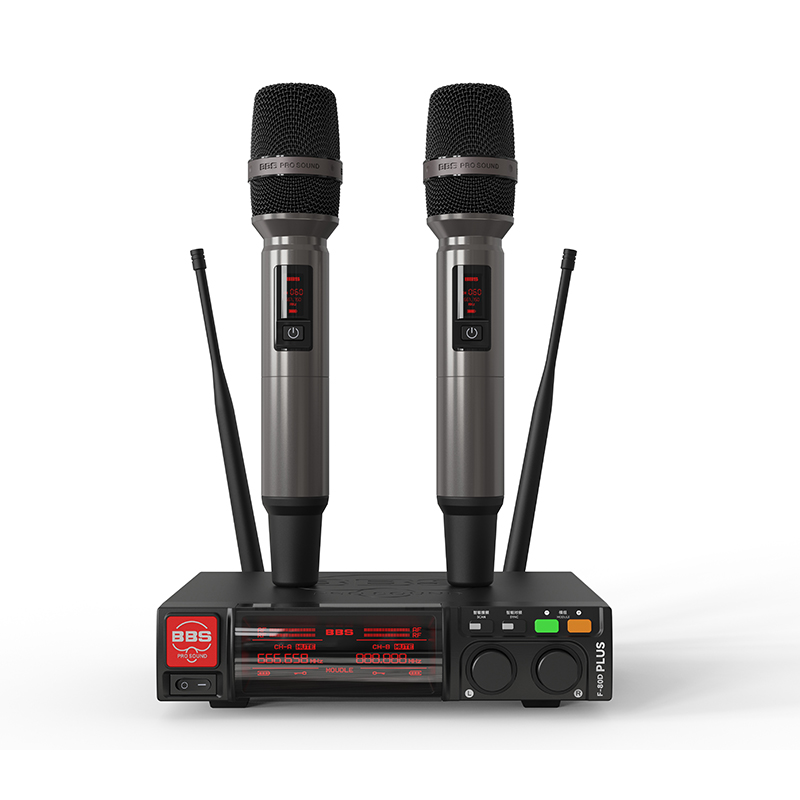

F-80D PLUS
QR code
share
Features:
*True diversity design with compact digital audio processing。
*The volume difference between the CH-A and CH-B is super small.
*Multi-stage filters with stronger anti-interference capability, independent narrowband filter,
*Equipped with PLL dual-channel phase-locked loop circuit design and lD code
locking for self-selected channels.
*High-performance DSP integration.
* UHF dynamic compression technology for Hi-Low frequency selection.
*Shake-to-pair frequency connection method, simple and easy to operate.
*True diversity design with compact digital audio processing。
*The volume difference between the CH-A and CH-B is super small.
*Multi-stage filters with stronger anti-interference capability, independent narrowband filter,
*Equipped with PLL dual-channel phase-locked loop circuit design and lD code
locking for self-selected channels.
*High-performance DSP integration.
* UHF dynamic compression technology for Hi-Low frequency selection.
*Shake-to-pair frequency connection method, simple and easy to operate.
Detail
Specifications:
System
Frequency range: 640.000-690.000MHz
Channels: 200CH
Frequency space: 250KHz
Working distance: ≈50m
Frequency width: 50MHz
Frequency oscillation mode: PLL frequency synthesis
Receiver
S/N Ratio: ≥50dB
Frequency stability: ±5KHz
Receiving:CPU controlled selection & pilot identification
Mute: Mute & Lock loop circuit
Display: LCD
Power supply: 12V DC, 1250mA

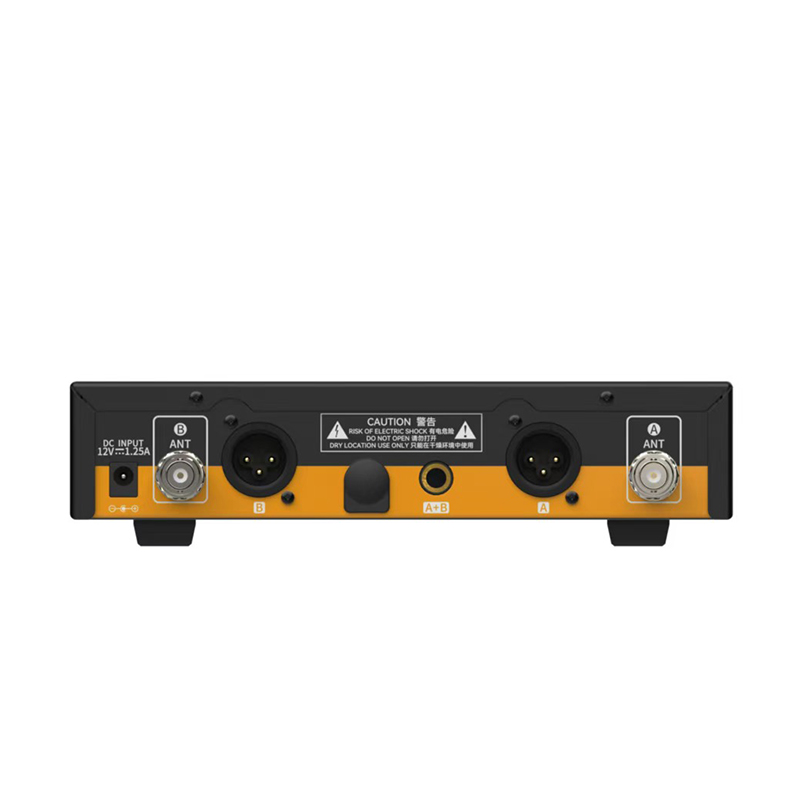

Output connection: 2 XLR Balanced Socket+Unbalanced TRS6.3mm Socket
Transmitter
Frequency oscillation mode: PLL frequency synthesis
Power:≤30mW
Transmission:CPU controlled carrier & pilot identification
Frequency stability: ±4KHz
Display: LCD+ color backlit
Cartridge: Dynamic
Two level power: high-low
