LX-1
* True diversity reception system with single channel design.
*Stable RF performance and clear audio output, widely applicable to various occasions such as public broadcasting, stage performances, and small conferences.
*Infrared Frequency Sync Function
*Automatically selects interference-free channels.
*Up to 8 Units working at the same time.
*Built-in independently controllable high and low pass filters.

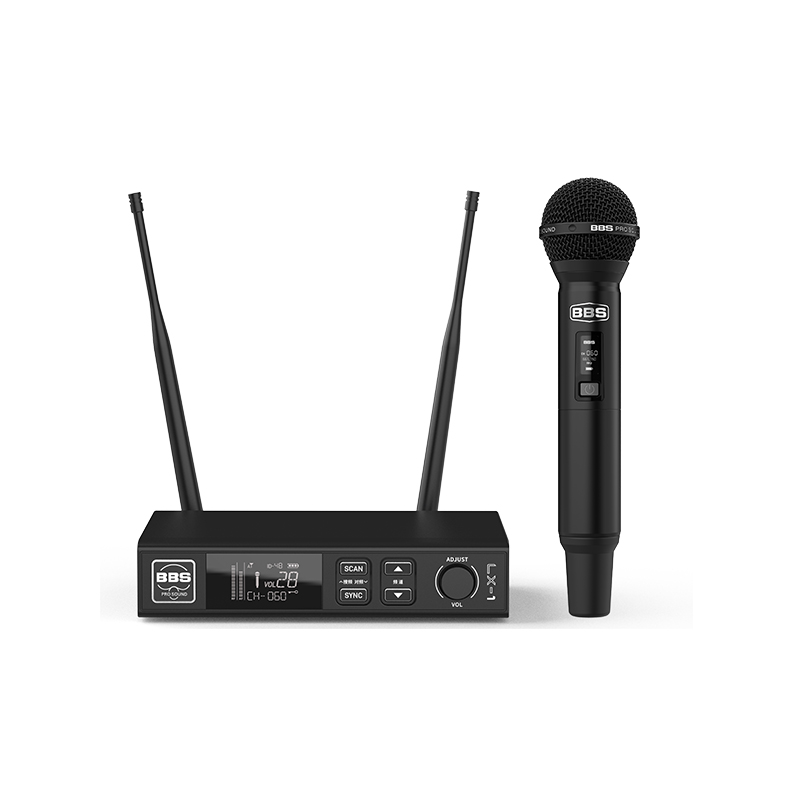

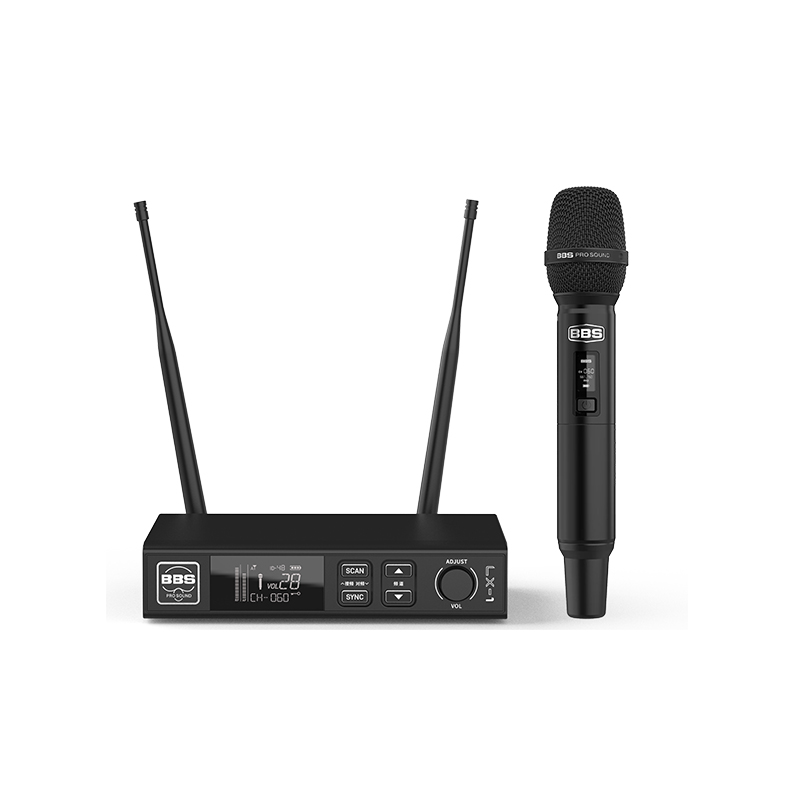

LX-1HT SET: Handheld version( A Round cap , B Square cap)

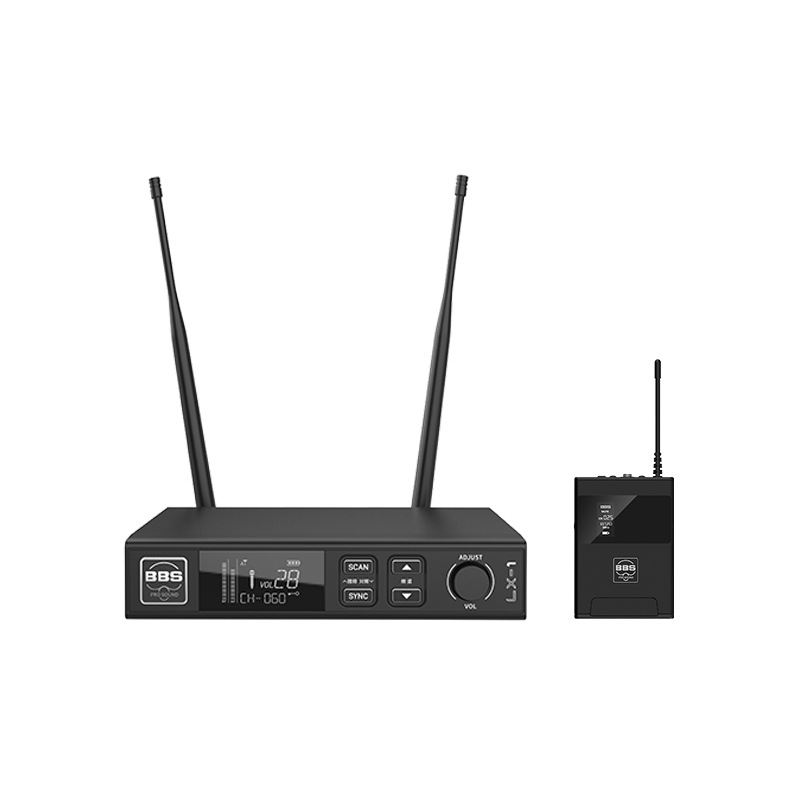

LX-1 PT SET: Bodypack version
Specifications:
System
Frequency Range: 651.000 - 697.000MHz
Channels: 164 CH
Frequency Space: 250KHz
Bandwidth: 46MHz
Signal-to-Noise Ratio: ≥50dB (national standard method), ≥102dB (A-weighted, conventional test method)
Operating Distance: >100 meters (unobstructed environment)
Receiver
Display : 2.69" TFT color screen
Power Supply: DC 12V 1.25A
Analog Audio Output: XLR Balanced Socket and Unbalanced TRS 6.35mm Socket
Curve Adjustment: Built-in independently controllable high-pass and low-pass filters
Handheld Transmitter
Transmission Power: High power mode 13dBm±1dB, low power mode 8dBm±1dB
Frequency Stability: ±5KHz
Display : 0.96" TFT color screen
Battery : 2 AA Size
Bodypack Transmitter
Frequency Stability: ±5KHz
Transmission Power: ≤30mW (12±1dBm)
Display Screen: TFT
Connector: 3.5 TS or TA4F for option
Battery: 2 x AA Size
Dimensions: 88*62*22mm
Microphone: Condenser headset or lavalier mic for option
