PX-1
*True diversity reception system with single channel design.
*Equipped with optical fiber transmission, capable of reaching over 100 meters
*The handheld microphone has a mute button for easy use
*Up to 16 sets of products for stack use .
*Automatic frequency scanning and infrared frequency Sync
*Up to 50 different ID numbers, facilitating the management of multiple products in complex application scenarios.
*With an active noise-canceling dynamic microphone.
*Parallel RJ45 interface, supports RS485 protocol, supports future expansion of third-party management.

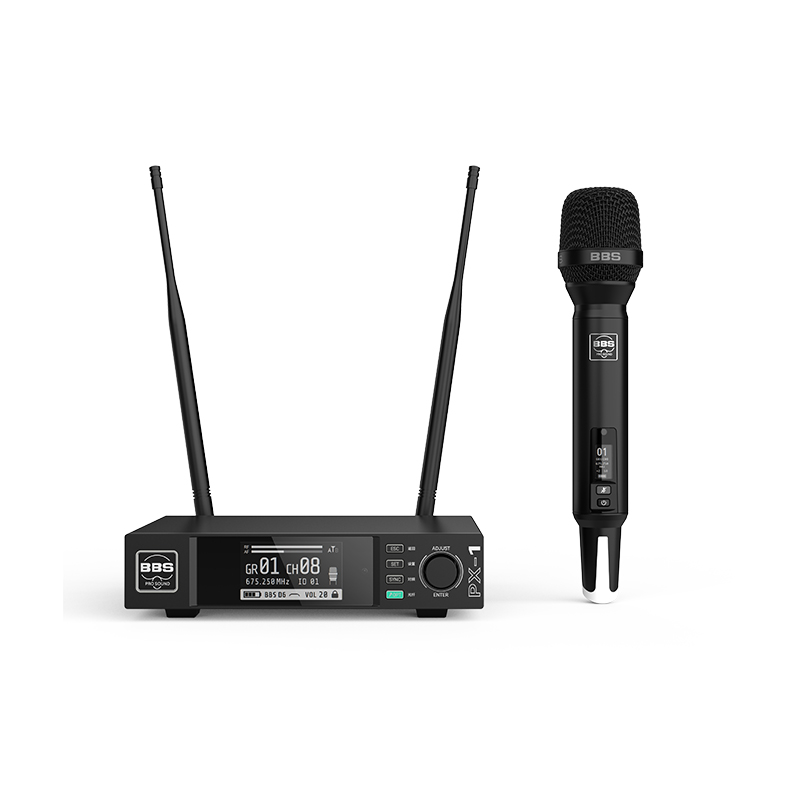

PX-1 HT SET: Handheld version

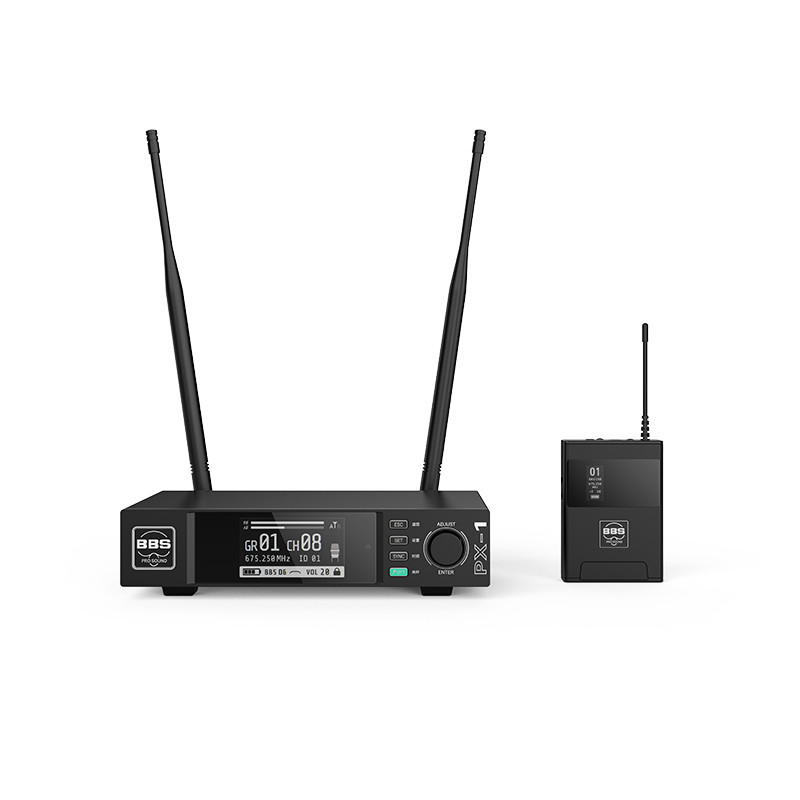

PX-1 PT SET: Bodypack version
Specifications:
System
Frequency range: 651.000MHz-697.000MHz
Channels: 164 CH
Frequency space: 250KHz
Bandwidth: 46MHz
S/N Ratio: ≥50dB (national standard method), ≥102dB (A-weighted, conventional test method)
Working distance: > 100 meters (Without obstruction)

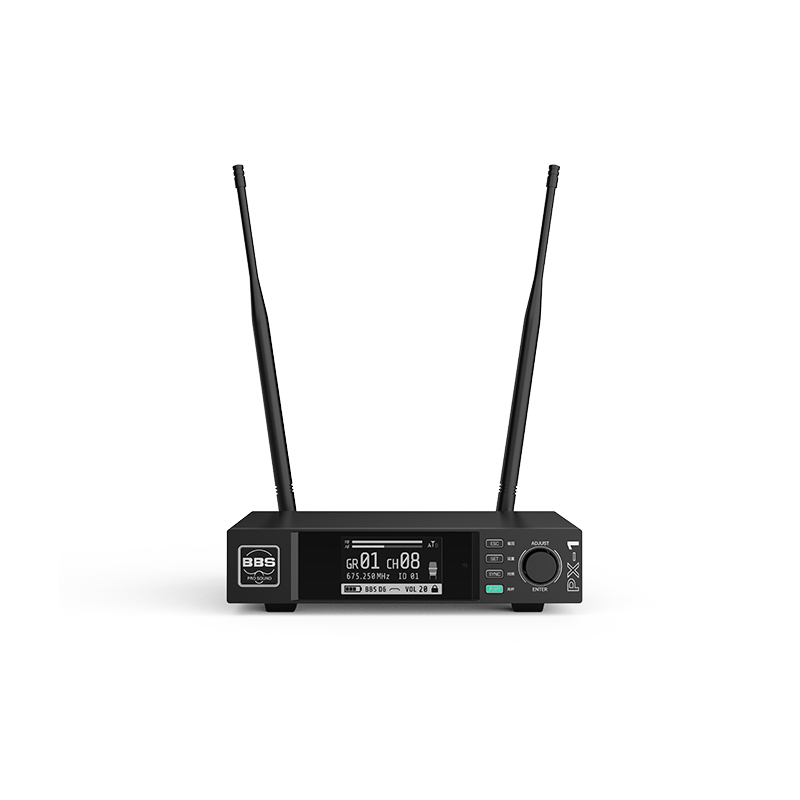

Receiver
Display mode: 2.69 "TFT color screen
Power supply: DC-12V 1.25A
Analog audio output: XLR balanced socket+ unbalanced TRS 6.35mm socket
Digital audio output: OPT
Built-in module: 4 groups , each group has 16 channels

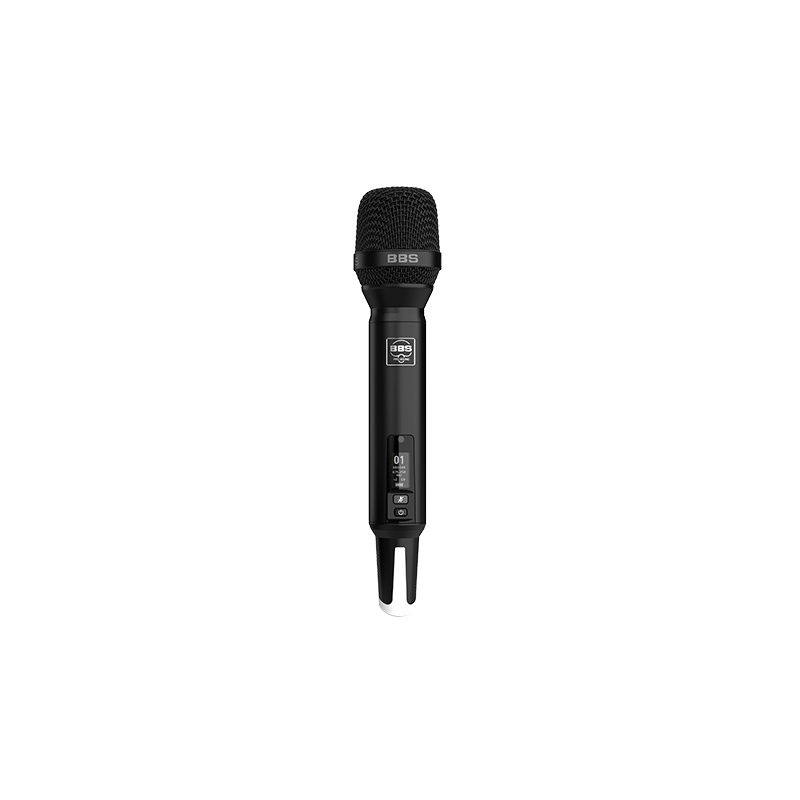

Handheld Transmitter
Power: high and low
Frequency stability: ±5KHz
Display : 0.96 "TFT color screen
Transmit gain: 7 levels
Battery：2 *AA Size
Bodypack Transmitter
Power: high and low
Frequency stability: ±5KHz
Display : 0.96 "TFT color screen
Transmit gain: 7 levels
Connector：TA 4F or 3.5 TS for option
Battery：2 *AA Size
Dimensions: 88*62*22mm
Microphone: Condenser headset or lavalier mic for option
